How to Read an eBike Battery Label
An eBike battery label lists the pack’s main specs, such as rated voltage, Ah, Wh, model details, and sometimes charge or current limits. Reading those fields in the right order helps you find the pack and see what still needs to be checked before you use a charger or buy a new pack.
Quick Answer
- Start with rated voltage.
- Read Ah and Wh together.
- Record any charge, current, model, or safety details shown.
- Then check the plug, polarity, mount, controller, and case dimensions.

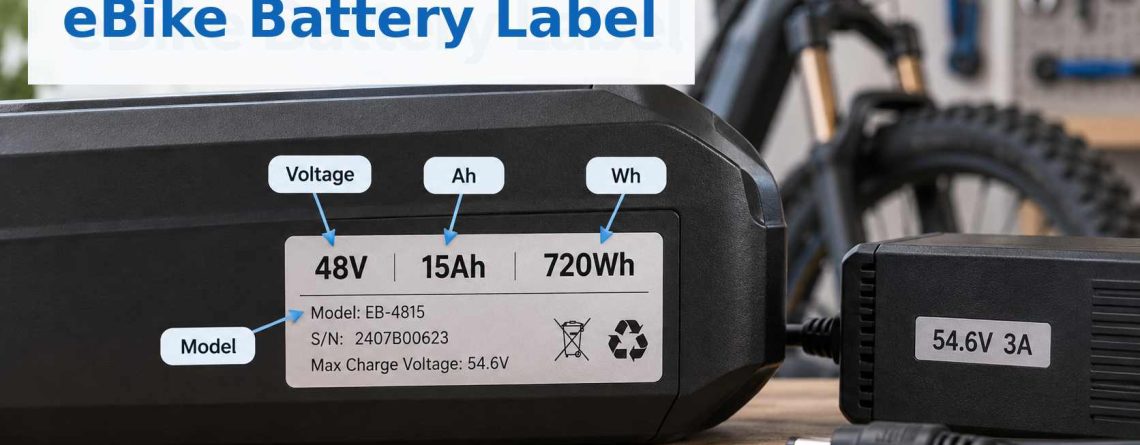

You may see 48V 15Ah 720Wh on the pack while the charger says 54.6V 3A. The numbers differ because the pack label gives battery ratings, while the charger label shows how the pack is charged.
Read the Label in This Order
Read voltage first, then Ah and Wh, then any charge or current limits, and finally the model or identification details.
- Find the full label. Take a clear photo so small numbers and units stay readable.
- Check rated voltage. A pack marked 36V, 48V, or 52V belongs to that voltage class.
- Read Ah and Wh. Ah shows charge amount, while Wh shows stored energy and is more useful when two packs use different voltages.
- Look for charge or current limits. Some packs list charge amps, discharge amps, or BMS data; others do not.
- Save the model and serial number. They can help you identify the exact pack version.
What the Main Label Numbers Mean
Each field answers a different question, so one matching number does not prove that two batteries are a direct swap.
| Field | What It Tells You | What It Does Not Prove |
|---|---|---|
| V | Voltage class | Exact state of charge |
| Ah | Charge amount | Energy at another voltage |
| Wh | Stored energy | Guaranteed ride range |
| Charge V / A | Charge need, if shown | That any charger will work |
| Model / serial | Pack identification | Physical compatibility or controller compatibility |
Pack Voltage vs. Charger Voltage
A common 48V lithium ion pack can reach about 54.6V when full, so it may use a 54.6V charger. Do not choose a charger by voltage alone. Plug type, polarity, cell type, and the maker’s guide also matter.
Ah vs. Wh
Ah tells you charge amount, while Wh combines voltage and Ah to show stored energy. For example, 48V × 15Ah = 720Wh. It does not promise a fixed range because hills, speed, load, cold, and assist level change energy use.
See Ah vs. Wh on an eBike battery.
What the Label Cannot Confirm
The label may not confirm the plug, polarity, mount, case dimensions, controller load, pack health, or communication requirement. Check these separately.
Check the Bike Before You Buy a New Pack
Use the label as your first check, then compare the charger, controller, plug, mount, and case dimensions before you buy a new pack.
Quick replacement check
- If voltage is not the same, stop and check the bike system.
- If the plug or polarity is not the same, do not connect the pack.
- If Ah or Wh is different, compare range needs as a separate step.
- If charger details differ, check the right charger before use.
- If current limits are not shown, check the maker’s product guide.
If the label is worn off, check the bike manual, charger label, controller label, plug, mount, and old product page. Do not choose a new pack from case shape or motor wattage alone.
For a full fit check, see what size battery you need for an eBike. To compare the printed voltage with a live reading, use the multimeter guide.
Compare Packs After the Checks
Once voltage, plug, controller, charger, and compatibility are clear, compare eBike battery packs.
eBike Battery Label FAQ
These answers cover the label details riders most often need.
What does 48V mean on an eBike battery label?
It is the pack’s voltage class. The pack will not always measure exactly 48 volts.
What does Ah mean?
Ah means amp-hours. It shows charge amount, but it does not show total energy on its own.
What does Wh mean?
Wh means watt-hours. It shows stored energy and helps you compare packs that use different voltages.
Is the BMS rating always on the label?
No. If current limits matter for controller use, check trusted product data or ask the seller.
Can I replace a pack if voltage and Ah match?
Not yet. You still need to check the plug, polarity, mount, case dimensions, current limit, charger, and any communication requirement.
Conclusion
Read voltage first, then Ah and Wh, then charge or current data. After that, check the bike parts that the label cannot prove.
A battery label is a good starting point, but it is not a full compatibility check. Keep a clear photo of the label and check the rest of the bike before you charge or replace the pack.
