EM3ev Super Shark 1005 – 36V 17Ah eBike Battery
From: £280.12 (GBP)
- Description
- Reviews (0)
Description
⚡ EM3ev Super Shark 1005 — 36V 17Ah (612Wh) – 10S5P-35E
Compact Long-Range 36V Pack | Samsung Cells | Smart BMS | Since 2011
The EM3ev Super Shark 1005 is a compact yet long-range 36V 17Ah eBike battery Built with genuine Samsung 18650-35E cells in a 10S5P configuration and controlled by a 40A temperature-protected smart BMS, this pack is ideal for riders looking for a long-range 36V eBike battery pack for commuting, trekking and mixed-use riding.
The pack uses the proven Reention Super Shark rail mount combined with an IP65-rated enclosure, making it suitable for all-weather riding on city streets, bike paths and light trails. It is an excellent choice for geared hub motors and 36V mid-drive systems where a reliable, efficient power source is key.
🔋 Key Model Highlights
- Energy: 612Wh – extended range for 36V systems
- Capacity: 17Ah using Samsung 35E cells
- Voltage: 36V nominal (10S)
- Continuous Discharge: 40A smart BMS

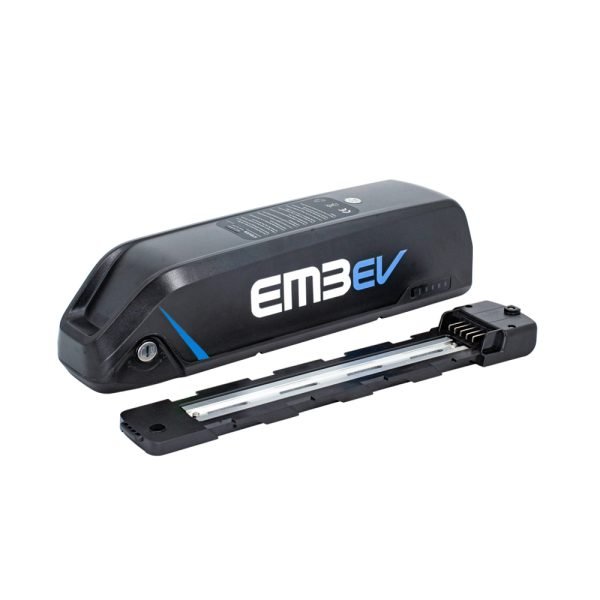

- Mount: Reention Super Shark downtube rail
- Protection: IP65 dust & water resistance
- Bluetooth: Optional smart BMS with app
- Weight: approx. 3.75 kg
📊 Technical Specifications
| Model | Super Shark 1005 | ||
|---|---|---|---|

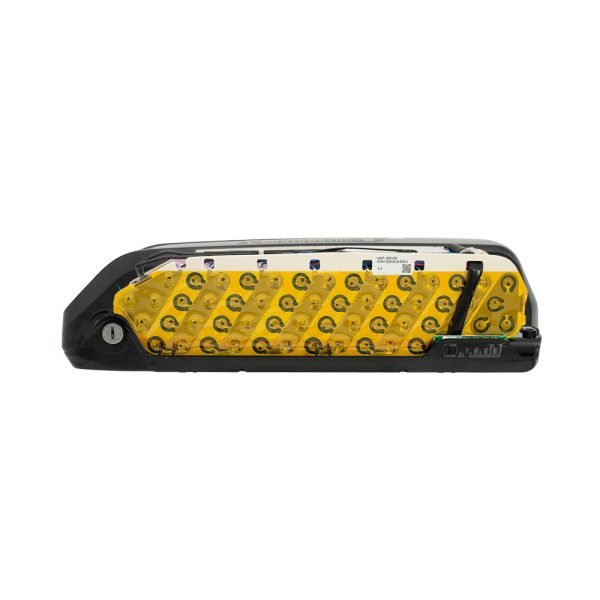

| Pack Configuration | 10S5P – Samsung 18650-35E | ||
| System Voltage | 36V (Nominal 36V / Full Charge 42.0V) | ||
| Discharge Cut-Off | 27V | ||
| Nominal Capacity | 17Ah | ||
| Energy | 612Wh | ||
| Continuous Discharge | 40A | ||
| Cell Type | Samsung 18650-35E (NMC) | ||
| BMS | 1103A-FPS smart BMS, temperature protected, optional Bluetooth | ||
| Charge Connector | Reention DC barrel port (supports 3A–5A 36V chargers) | ||
| Discharge Connector | Reention rail pins (XT90 / XT60 / Anderson optional) | ||
| Typical Charging Time | ~5.8 h @ 3A • ~4.3 h @ 4A • ~3.5 h @ 5A | ||
| IP Rating | IP65 (dust-tight & splash-resistant) | ||
| Cycle Life | 500+ cycles (≥80% remaining capacity) | ||
| Certifications | UN38.3 transport certified / CE | ||
|
-10 °C to +45 °C | ||
| Charging Temperature | 0 °C to +45 °C | ||
| Storage Temperature | 0 °C to +45 °C (cool, dry environment recommended) | ||
| Warranty | 1 year | ||
| Approx. Weight | Approx. 3.75 kg |
🛠️ Built for Real-World Riders
- Extended range for commuting and trekking while keeping a compact 36V form factor.
- Great option for riders needing a long-range 36V eBike battery without moving to higher voltages.
- Ideal for geared hub motors and 36V mid-drive kits used in daily riding.
- Reention Super Shark rail mount ensures a secure fit on a wide variety of frames.
📱 Smart BMS & Bluetooth Monitoring
- Bluetooth-enabled BMS for real-time pack status, voltage, current and temperature.
- Perfect for riders looking for a 36V battery with Bluetooth monitoring and diagnostics.
- Customizable limits for OEM customers or advanced users.
🧩 Customization Options
- Connector choices: XT90 / XT60 / Anderson.
- Custom harness length to suit different frame geometries.
- OEM branding and tuning options available on request.
🧪 Quality & Testing
- Every pack is cell-matched, load-tested and BMS-verified before shipping.
- Nickel–copper hybrid busbars for low resistance and stable high-current performance.
- IP65 sealing and vibration testing for real-world road and trail conditions.
🚚 Shipping Information
- Ships within 3–5 business days after order confirmation.
- UN38.3 certified lithium battery packaging for safe global transport.
- Worldwide tracked shipping (US/EU/UK/AU supported).
- Shock-absorbing internal packaging to protect the pack in transit.
- 24/7 customer support for logistics or technical questions.
⚠️ Safety & Handling
- Use only compatible 36V lithium-ion chargers; never charge unattended.
- Do not puncture, crush, short-circuit or immerse the battery in liquids.
- Store between 0–45 °C and avoid prolonged storage at 100% state of charge in high heat.
🏆 Why Choose EM3ev
- 🔷 Founded in 2011 — over a decade of eBike battery engineering experience.
- 🌍 Trusted by riders worldwide for reliable 36V, 48V and 52V packs.
- 🧰 Real-world tested solutions for both mid-drive and hub motor systems.
- 💬 Engineering-led support team focused on performance and safety.
EM3ev — Power That Moves You Forward.
Looking for a battery without branding? We also offer an unbranded (OEM) version of this pack for custom builds or discreet installations. Click here to learn more.⬅️
