Bafang 48V 750W BBS02 Ebike Kit (CANBUS Version) With Battery Pack Option (~1200W Max)

Description

Bafang 48V 750W BBS02 Ebike Kit Features:

The Bafang BBS02 48V 750W Mid-Drive kit with Battery option includes everything you find in the 48V BBS02 Kit, as well as a suitable battery and charger. Some details of the 48V BBS02 kit are:

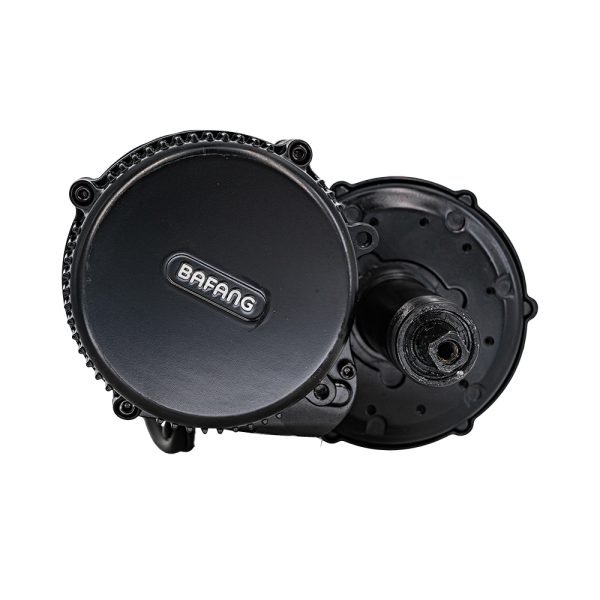

• Motor with integrated 25A, 9 mosfet controller (IRFB3077 Mosfets installed).
• The BBS02 motor is intended for the typical 68mm or 73mm bottom bracket. If you are unsure, if your bike is suitable, please read the additional info or send us an email through the contact form.
• Additional GearSensor connector on motor.
• 44T chainwheel and pedal arms (does not include pedals), or optional 42T Bling Ring.
• Waterproof interconnecting cabling (E-Bus).

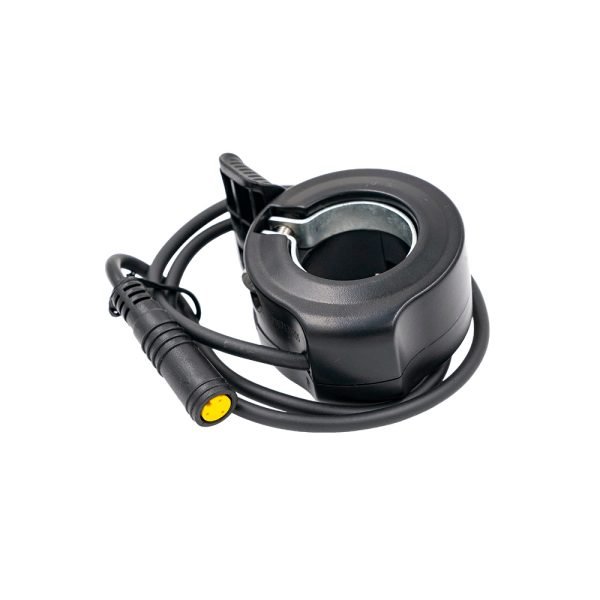

• A choice of throttles.

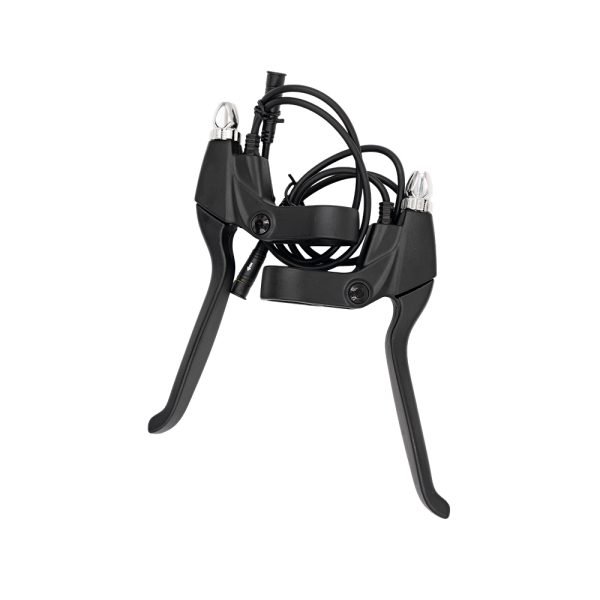

• The kits come with a choice of ebrakes and ebrake sensors.

All the battery choices that we have offered as options, are a good match for the 25A Bafang BBS02 Kit.

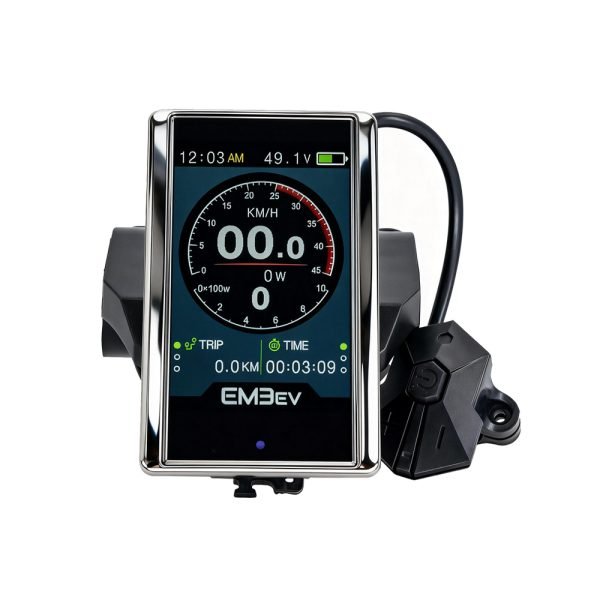

Next Generation DP C010.CB 4″ Colour TFT Display (CANBUS version)

The 48V BBS02 has now been paired with the next generation 4″ colour TFT display.

IP66 rated, it features a USB C with 1A charge current for mobile devices, Bluetooth connectivity (integrates with Bafang Go app).

BBS02 Wheel Sizes

We offer the 48V BBS02 CANBUS version with 4 different wheel size settings to suit every size bicycle tyre. 20″, 24″, 26″ and 700c/28″/29″. Please choose this carefully, as you won’t be able to alter this setting afterwards.  The correct wheel size is important for giving an accurate measurement of your speed.

Differences Between CANBUS and UART versions

The E-BUS harness, display connector and speed sensor are not compatible between CANBUS and UART generations.

The cranks, chainwheels, throttles and ebrake accessories are all cross-compatible.

Wheel sizes cannot be changed by the ebike display. These must be set correctly before they leave us as they cannot be changed afterwards.

CANBUS uses more robust signalling that’s much less prone electronic noise interference and gives better diagnostics.

Summary: What’s Included as Standard

• The motor along with the controller

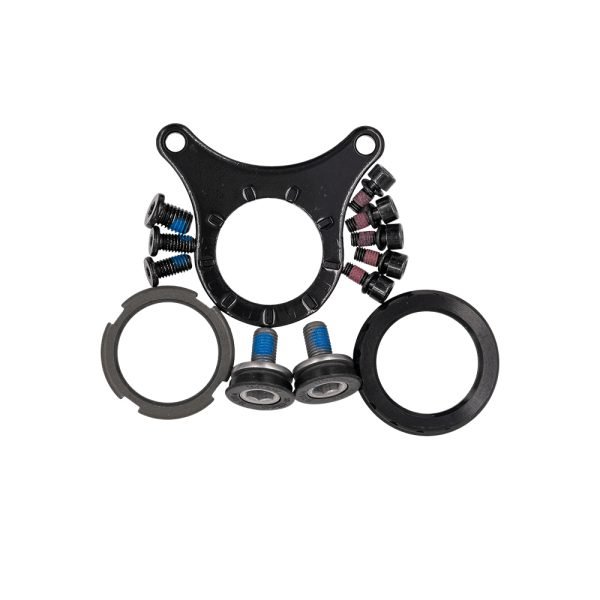

• Mounting hard-ware (the 68mm version includes additional longer bolts and spacers for 73mm BBs – these additional items are for the triangular mounting bracket)

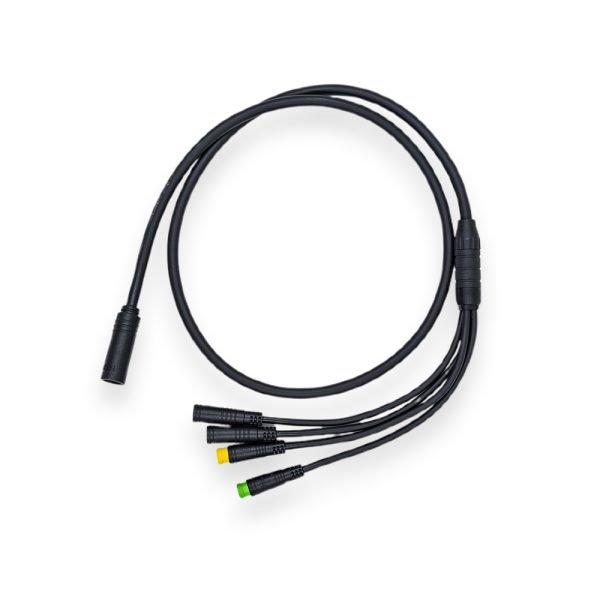

• E-BUS Harness (CANBUS version)
• Speed Sensor (CANBUS version)

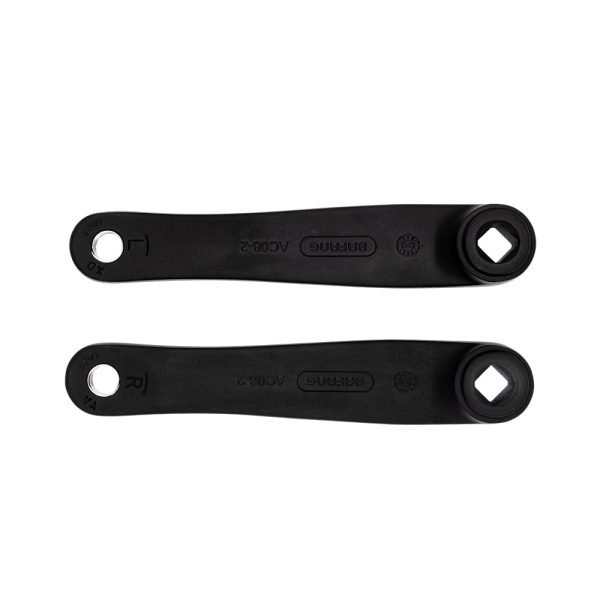

• Factory Cranks
• Additional GearSensor Connector – straight from the motor
• A choice of chainwheels – this is a mandatory option
• The DPC 010.CB – this is a mandatory option

Summary: What’s Not Included

• Battery
• Battery charger
• Throttle
• Ebrakes
• GearSensor
• Installation tools

Spacer Requests

Requests can be made for spacers via email or through the order notes sections when placing an order. We have a limited supply of 7mm bottom bracket and 1.5mm chainwheel spacers.

Bafang 48V 750W BBS02 Ebike Kit Warranty

EM3ev offer a solid 1-year warranty (not a flaky 3-month warranty like some) on all our products (unless specifically and clearly stated otherwise). We have have local support in the USA, Australia, UK and Ireland. Customers can send problem motors parts to our local support for repair if the issue cannot be resolved remotely.

So, please consider that when making your comparison between suppliers and also consider that we have been supplying ebike parts (and also manufacturing batteries, in our own factory) for around 5 years. EM3ev is operated by an Engineer that actually understands what we sell. EM3ev was built on the back of happy customers and good products, not self-promotion, hype and paid bloggers!

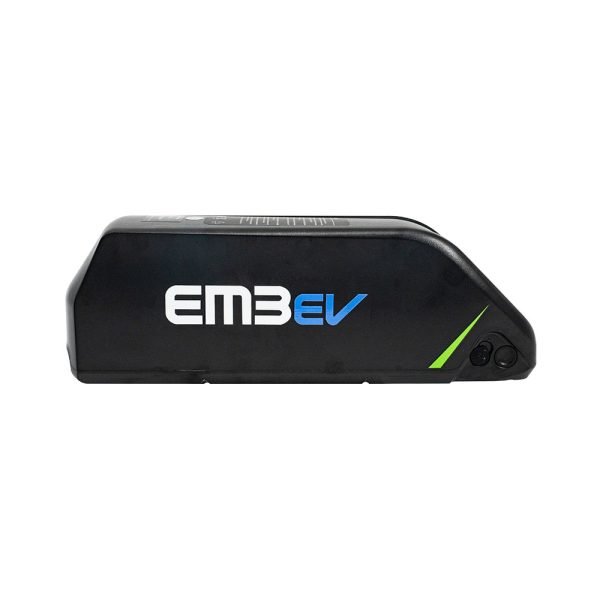

The Bafang 48V 750W BBS02 Ebike Kit with ebike battery pack option

EM3ev were the first company to have high quality IRFB3077 mosfets installed into their 750W BBS02 Kits. This was back in June 2015. This is when we finally managed to convince Bafang to fit some mosfets, that we supplied to them back in the spring of 2015. Bafang quickly realised this modification made a big improvement to the controller reliability. As a result they fitted the same IRFB3077 mosfets into all the 750W BBS02 kits they manufactured from then onwards.

We had no desire to make a big deal about this fact, at least not until we read the misinformation spread by certain suppliers, stating that you can only be sure that the upgrade mosfets are fitted, if you buy from them, or suggesting that kits bought from China (where all Bafang Kits are manufactured) may not be fitted with IRFB3077 mosfets.

Don’t let any delusional/dishonest suppliers, tell you that only their motors come fitted with upgraded mosfets. All 750W BBS02 kits manufactured after ~August 2015 were fitted with these upgraded mosfets and they have a been standard ever since, on ALL 48V 750W BBS02 kits.

Information on the Bafang 48V 750W BBS02 Ebike Kit:

Bafang BBS01/02 Mid Drive Kit Manual

The DPC C010.CB manual includes how to get into the settings and advanced settings menus to change various parameters.

Installing BBS01/2 onto a 73mm BB Frame

Here you can find out more info on the BBS02 Chainring  and Bling Ring.

Lead-Times For Battery Pack

If we don’t have the battery pack already built in stock, the lead time is approx. 5 to 7 working days for us to build one once the order has been placed.
